— Service
Engineering Design.
Mechanical design, 3D CAD modelling, manufacturing drawings, assemblies, and BOMs — complete engineering documentation.
— Overview
Building a new mechanical product or component carries risk mainly in the handoff — everything that can go wrong between a good concept and a manufacturable part. Machton Systems takes design from early concept through parametric CAD to a full production-ready package, checking feasibility and manufacturability at every stage rather than only at the end.
Concept & modelling — mechanical design and parametric 3D CAD, refined through iteration rather than locked early.
Documentation & handoff — GD&T, manufacturing drawings, BOMs, and assemblies ready for a fabricator to work from directly.
2D + 3D
Design scope
500+
Assembly Parts
1 – 2 wks
Typical turnaround
DFM
Design approach
Deliverables & where this applies.
Key Deliverables
WHERE THIS APPLIES
How this is typically engaged.
— Recommended: Fixed-Scope Milestones
Why this fits.
A design’s requirements, target function, and deliverable can usually be defined upfront, so the project breaks cleanly into milestones — concept, modelling, and manufacturing handoff — each priced and scheduled before work begins.
Typical duration
3–6 weeks
Pricing
Agreed per milestone
Communication
Milestone check-ins
– Our WORK
Projects from this service.

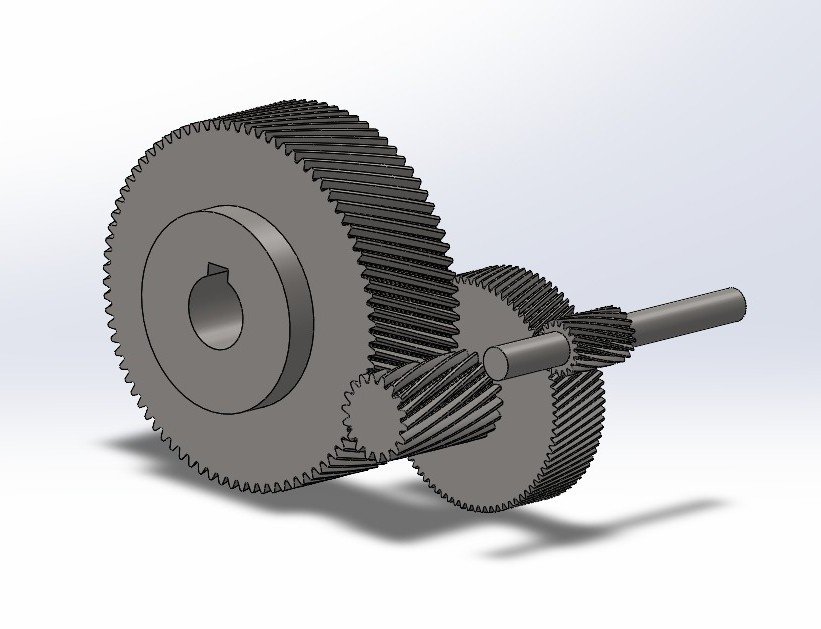

Multi-Stage Gear Train Design & Modelling
Gear train engineering for a constrained power-transmission application, from ratio calculations through to a fully modelled assembly.

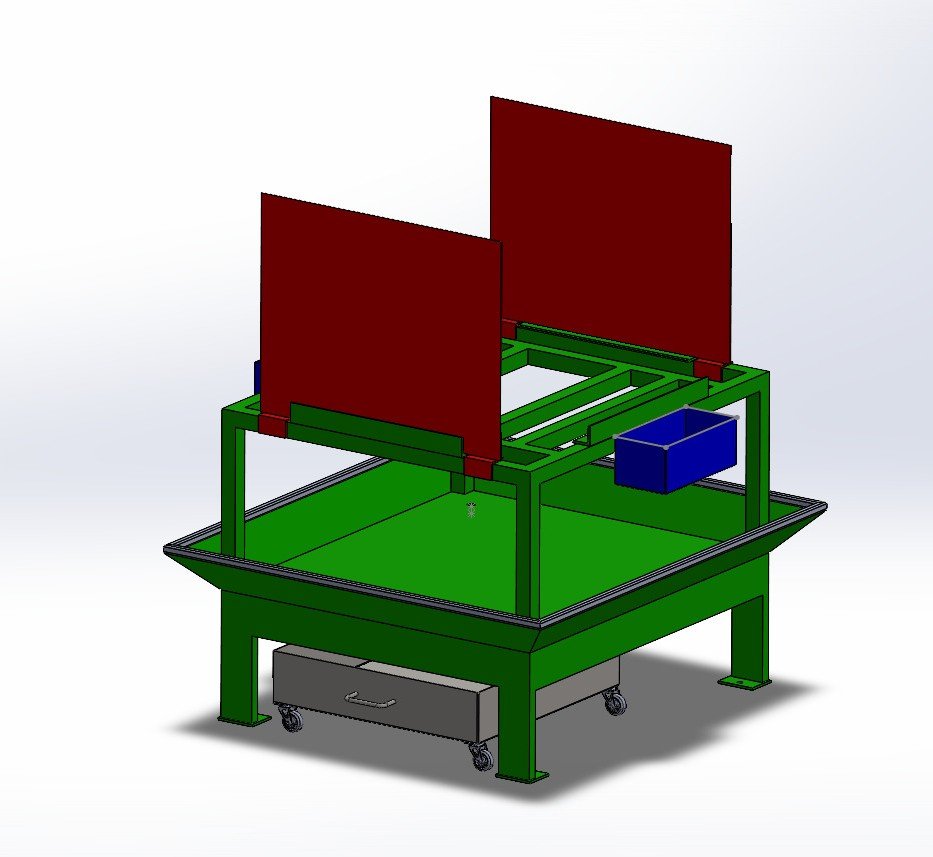

Corrosion-Resistant Test Structure Development
SS304 structural frame engineered for a dedicated mechanical test rig, built for corrosion resistance and dimensional stability under repeated use.
Let’s discuss your engineering requirements.
Share your project scope, constraints, and objectives — we’ll outline a structured path forward.
